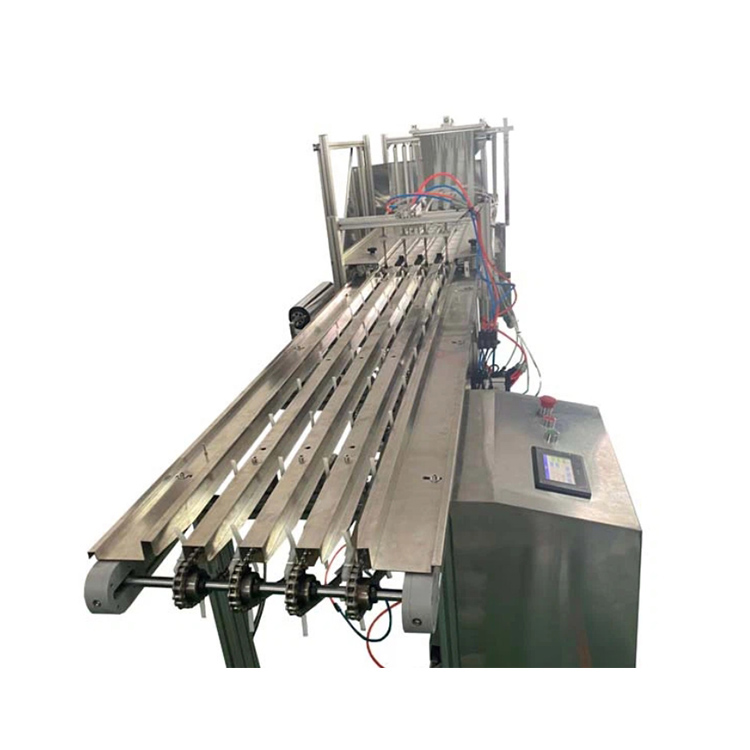

Automatic 4 Lane Cold Patch Cooling Gel Sheet Packaging Machine

PPD-4LCPM160

Automatic 4 lane cold patch cooling gel sheet packaging machine is used to packaging of cold patch,cooling gel patch,cooling gel sheet,hydrogel patch etc.
Machine works with 4 feeding channel,automatically adsorb and place cold patch on the conveyor belt,continuous film feeding with strong stability and high production,save the labor cost a lot.

Features:
1.Machine adopts full servo drive, touch screen and PLC intelligent control,make running of the whole machine programmed.
2.It adopts photoelectric detecting sensor to detect the color mark,accurately track the color blocks of the packing roll.
3.Automatic bag making and heat sealing forming,high degree of automation.
4.Machine adopts magnetic powder control and drive device to balance the tension of packing material and make the whole machine run smoothly.

Technical Data:

Name:Automatic 4 Lane Cold Patch Cooling Gel Sheet Packaging Machine

Model:PPD-4LCPM160

Cold patch size:120*50mm(L*W)

Bag size:160mm*90mm(L*W)

Packing film ID:76mm

Packing film OD:≤350mm

Packing film width:≤520mm

Production speed:120-160bags/min

Motor power:1.5kw

Heater power:3.3kw

Voltage:220V,50hz

Cooling Gel Patch Packaging Machine, Hydrogel Patch Packaging Machine
