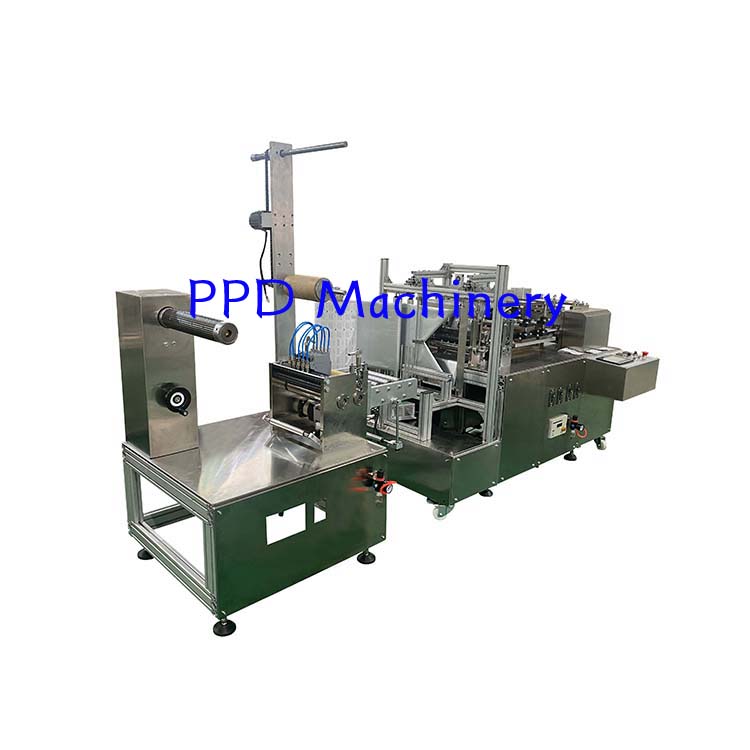

Nicotine Oral Film ODF OTF Mouth Dissolving Film Packing Machine

PPD-ODFP140

Nicotine oral film odf otf mouth dissolving film packing machine is ideal for packing of nicotine oral film,ODF, OTF,mouth dDissolving film,oral stamp,mini strip,fresh breath oral strips,Pet breath&oral care strip etc.
Machine adopts PLC program and touch screen to control the machine,the feeding, film pulling, heat sealing operation, and bag cutting are all driven by servo, with high bag making accuracy and stable operation.

Features:
1. Unique bag making mechanism,suit for the packaging bags with text patterns on both sides.
2. Unique design of film feeding device: After slicing the dissoling film, it will directly enters the packaging bag, which is stable and reliable.
3. Continuous, flat pressure, reciprocating operation. The heat sealing time can be adjusted to achieve better heat sealing effect.
4.Machine equipped with a online mouth dissolving film longitudinal slitting system.

Main Technical Parameters:

Name:Nicotine Oral Film ODF OTF Mouth Dissolving Film Packing Machine

Model:PPD-ODFP140

ODF size: Length 40mm x Width 25mm

Bag size: Length 86mm x Width 45mm

Processing capacity: 100-140 bags/min

Packaging film material: Easy to peel film and other heat sealable composite packaging film, OD:max 320mm,Width:max 400mm

Voltage:220V 50Hz

Total power:motor 4kw heating 3kw

Air supply:0.6-0.8Mpa

Cigarettes Smoking Oral Film Packing Machine, Fresh Breath Oral Strips for Dogs & Cats Packaging Machine, Fast Dissolve Oral Film Packing Machine
