Non Woven Fabric Folding Machine
Gauze Roll Folding Rolling Machine
PPD-GFRM90

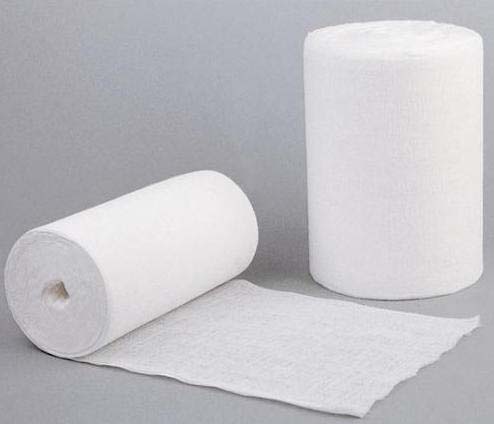

Gauze folding rolling machine is a specialized equipment used for producing two-fold, three-fold, and four-fold rolled gauze products. The folded gauze products can be used as gauze rolls, mainly in medical settings such as surgery and burn units.Gauze folding rolling machine consists of a feeding rack, a folding rack, and a receiving rack. The machine is easy to operate and highly efficient, significantly reducing labor intensity.
Features:
1. The machine performs automatic winding, fixed-length rolling, semi-automatic cutting, and pneumatic cylinder core rod extraction;
2. The length of the rolled gauze can be set on the meter counter, and the length is adjustable.
3. Running speed: 0-150 meters/minute (adjustable);
Main Data:
Name: Gauze Folding Rolling Machine
Model:PPD-GFRM90
Applicable Raw Material: Gauze
Folding Method: Two Fold
Parent Roll Width: 900mm
Parent Roll Inner Diameter: 76mm
Parent Roll Outer Diameter: max 700mm
Finished Product Width: 450mm
Production Speed: 30-150 meters/minute
Voltage: 380V, 50/60Hz
Power: 2.3 kW
Operating Air Pressure: 0.6-0.8 Mpa
Machine Dimensions: 2800*2000*2200mm (L*W*H)
Weight: 600kgs
