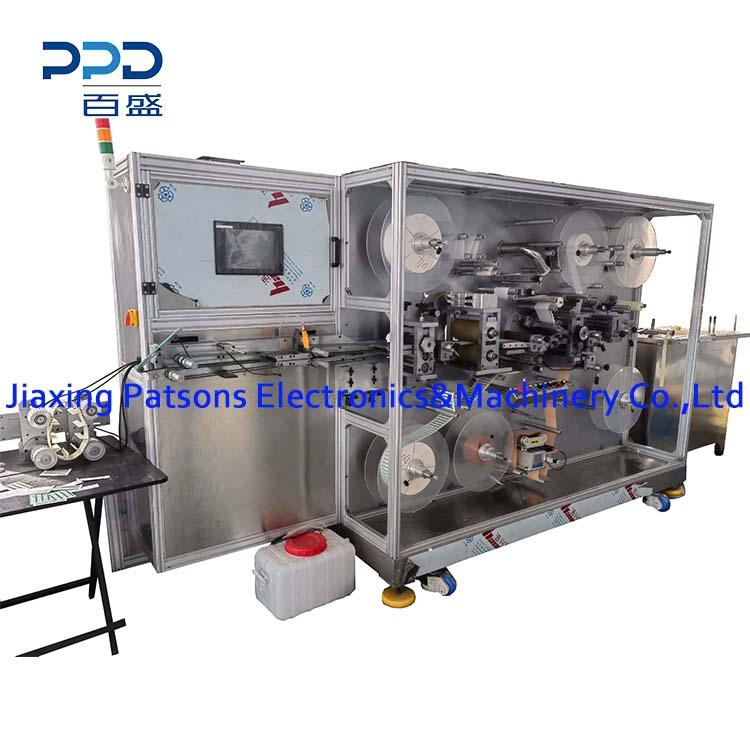

Automatic Band Aid Machine
PPD-BAM2500
Automatic band aid machine is a continuous packaging line that rolls, laminates, forms, and automatically packages raw materials, including base material (non-woven fabric/PE film), absorbent pads, colloids, and release paper, into finished bandage products.Features:

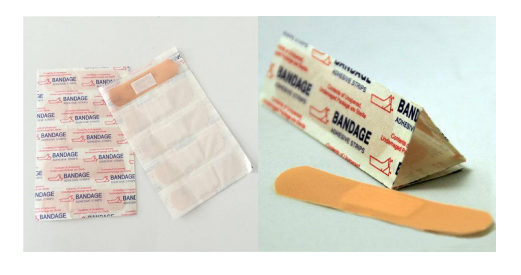

1.Machine is suitable for processing and packaging PE waterproof bandages, PU bandages, elastic bandages, and other bandage products.
2. Machine adopts full servo drive, stable in raw material and packing film feeding,accurate in bag cutting.
3. Bag making methods can choose heat or cold sealing.
4. Automatic tension control for the raw material rolls.
Main Data:
Name:Automatic Band Aid Machine
Model: PPD-BAM2500
Band aid size: 72*19mm (for reference)
Max band aid size: 100 x 22 mm
Max packaging bag: 130 x 40 mm
Bottom tape specifications: OD ≤ 400 mm, width ≤ 130 mm,ID:76mm
Machine speed: 75 m/min, maximum 2,500 sheets/min
Voltage: 220V, 50 Hz
Power: 9 kw
Electrical Parts/Brands:
1. Color Touch Screen/XINJE
2. Programmable Controller/XINJE
3. Servo Motor/XINJE
4. Servo Drive/XINJE
